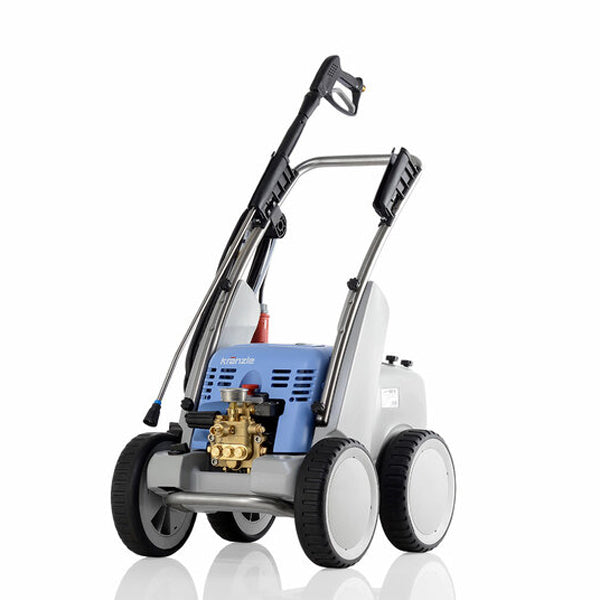

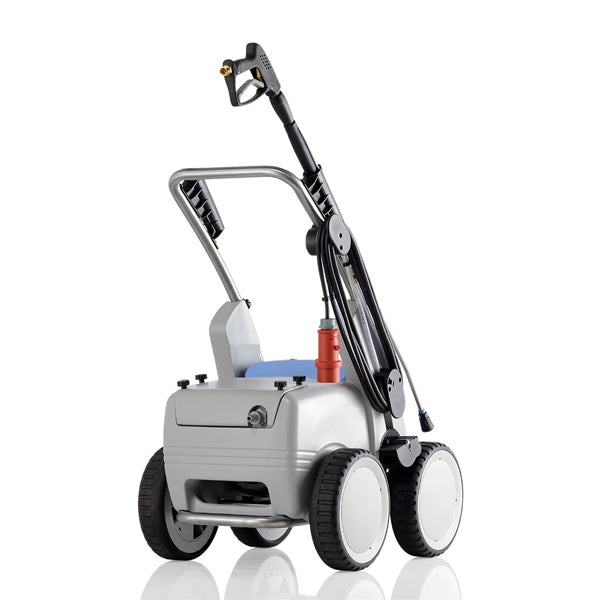

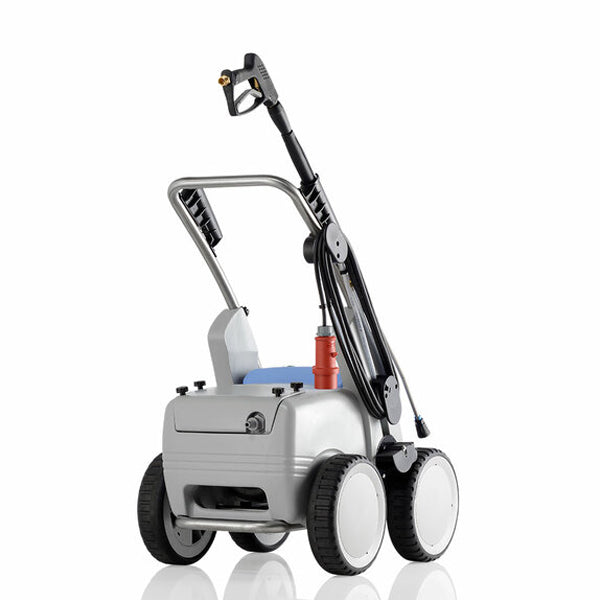

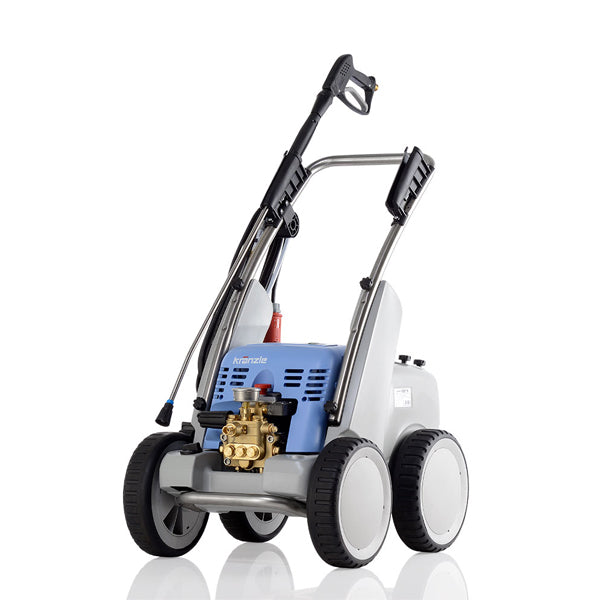

KRANZLE Quadro 1200 TS (415v)

£2,659.99
Seen it Cheaper?
  • KRANZLE Quadro 1200 TS Pressure Cleaner order no. 612110

    The Quadro 1200 TS(T) is an excellent design, and a very powerful pressure washer running on 3-Phase power supply (415 volt), designed with a large 16 litre water break tank and great stability. This is a monster of a machine!Making it fantastic for cleaning plant and heavy machinery as well as so many other demanding cleaning tasks.Durable design for industrial and commercial use.



    Features & Benefits:

    Integrated water tank, prevents damage to the high-pressure pump caused by a lack of water

    Rota-Mold-Chassis, virtually indestructible

    Pressure regulation, fully adjustable control allows operating pressures to be set to suit any task

    Total-stop system with delayed motor cut-off, auto-shutdown feature improves seal life-span and reduces power consumption

    Cleaning agent intake, injector system for dispensing of cleaning agents



    Alternative part numbers :- 404221, 404221.0, 40.4221.0



  • Technical Data:

    Operating pressure adjustable bar / MPa: 30-180 / 3-18

    Max. admissible overpressure bar / MPa: 200 / 20

    Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 12

    Motor speed Rpm: 1400

    Water output l/min & l/h: 19 / 1140

    Power intake / Power output kW: 7.5 / 5.5

    Volume water tank l: 16

    Power supply cable, m: 7.5

    Dimensions (L x W x H) mm: 770 x 570 x 990

    Weight (kg): 82


    Equipment:

    Steel braided high-pressure hose (m) 10

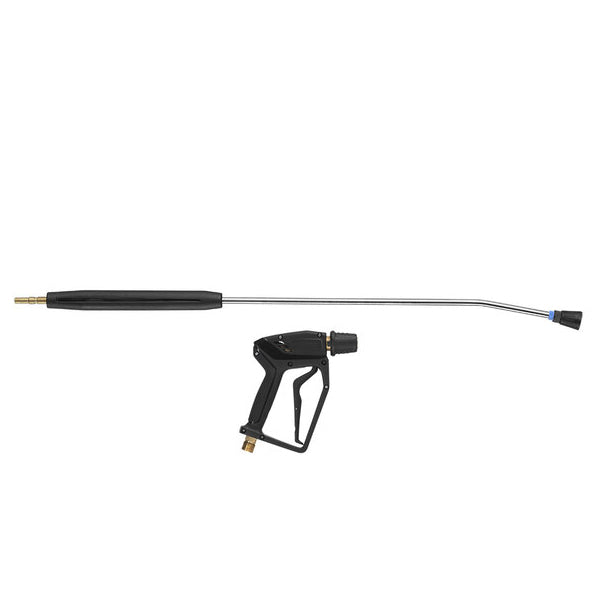

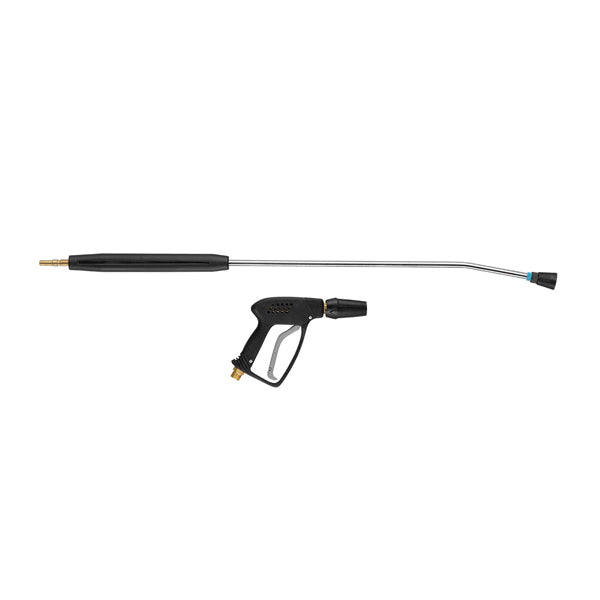

    Trigger gun with safety catch (model) Starlet

    Stainless steel lance with flat jet nozzle (nozzle size) D2507

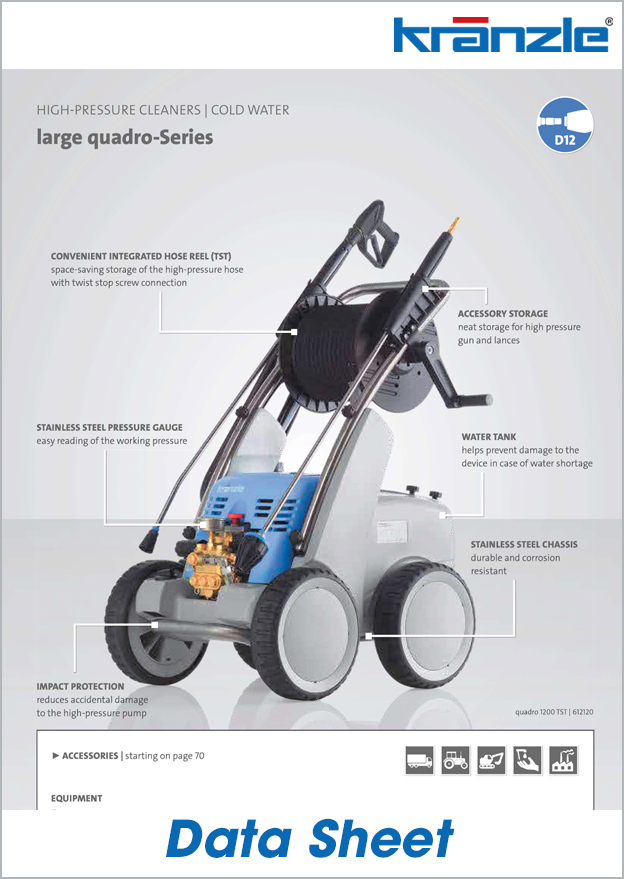

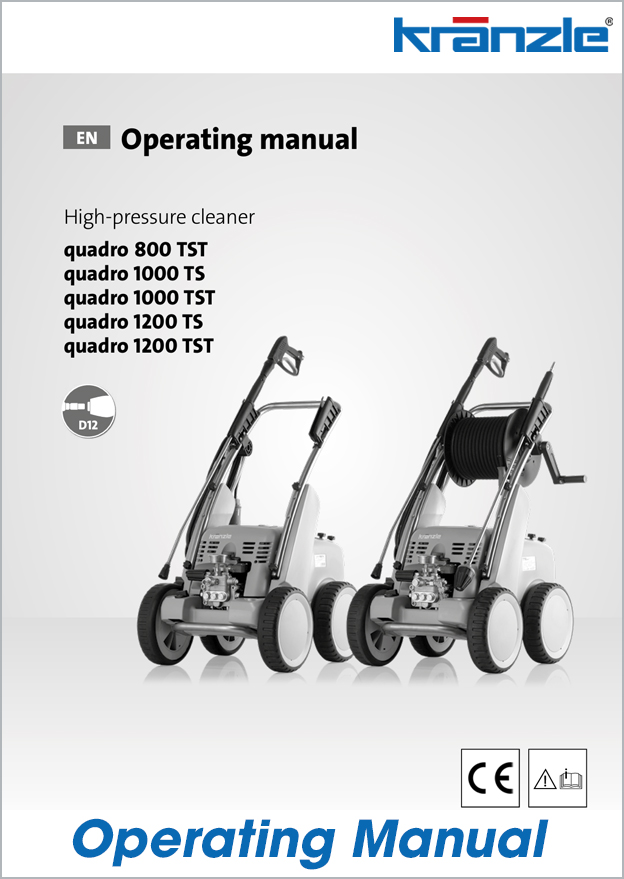

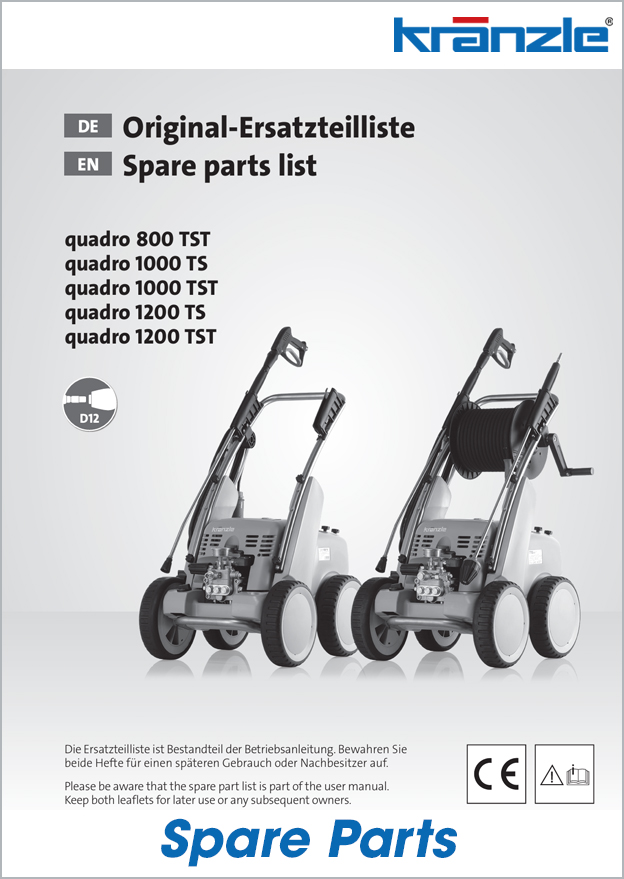

  • Download Documents
